Henry Ford Avenue Grade Separation Ports of Los Angeles and Long Beach

Los Angeles

Los Angeles

-

Completed in

Completed in

2006

2006

The Henry Ford Avenue Grade Separationwas designed to reduce conflicts between rail traffic and surface road traffic in the busy Ports of Los Angeles and Long Beach area. Alameda Corridor Transportation Authority elected to elevate and depress rail traffic above and below the surface traffic to improve the turn-around time of intercontinental rail traffic from the Ports of Los Angeles and Long Beach.

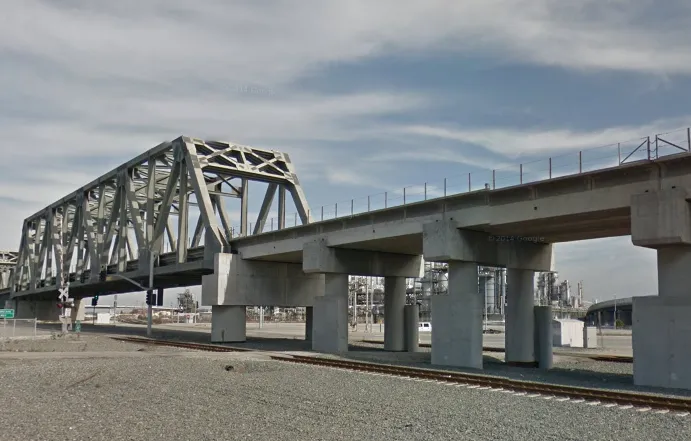

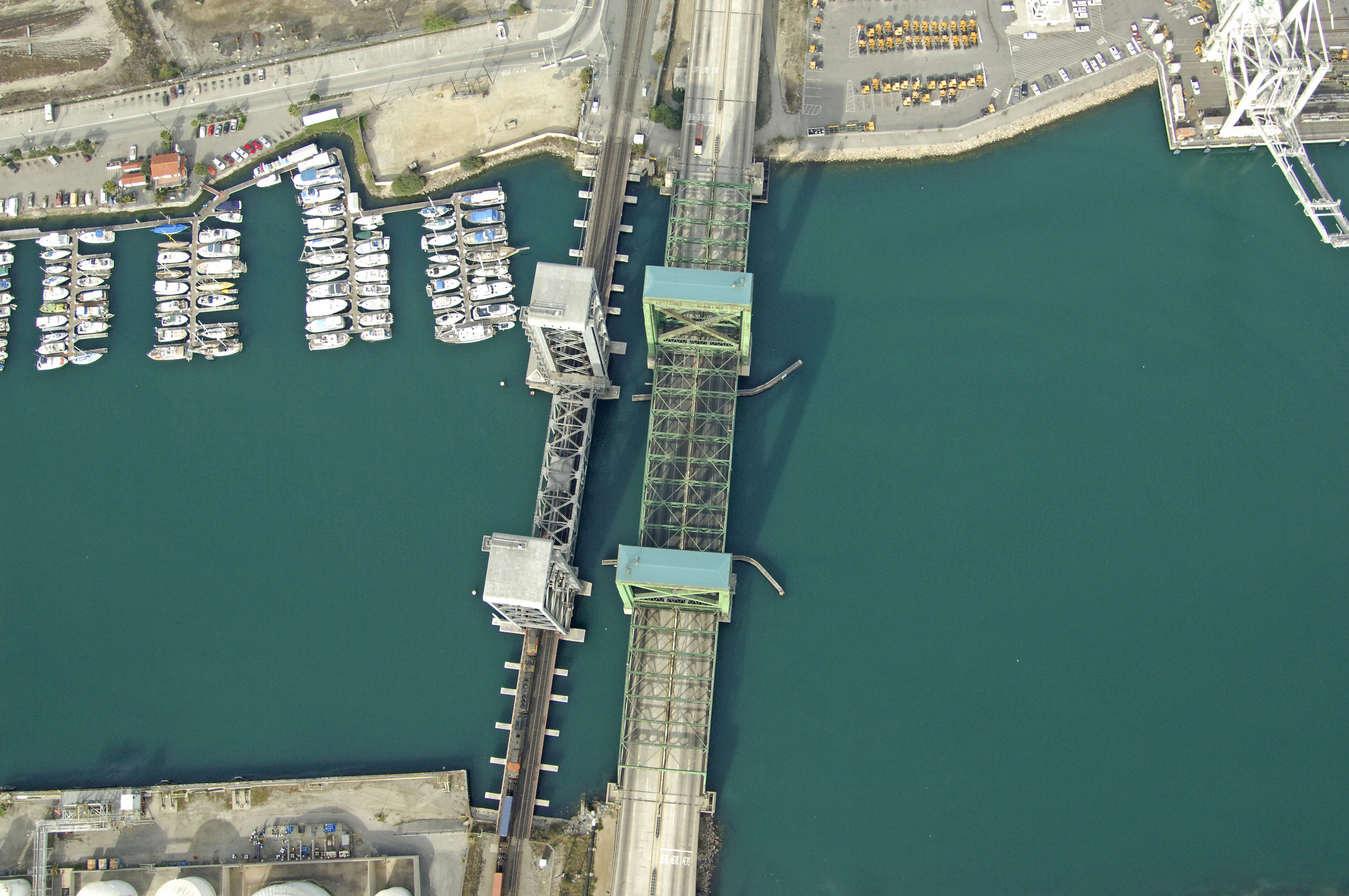

This grade separation project calls for construction of a mile-long, two-track railroad bridge over Dominguez Channel and freeway ramps, replacement of the existing single-track railroad bridge, widening of the Henry Ford Avenue vehicle bridge over the channel to six lanes from four lanes, and widening of the Henry Ford Avenue on-ramps and off-ramps at the Terminal Island Freeway (SR 47) from two to three lanes.

EMI provided geotechnical engineering services consisting of a soils investigation. Soil borings with Cone Penetration Test (CPT) were conducted to explore the site conditions along the railroad. Foundation design consisted of very large-diameter (Cast-In-Drilled-Hole) CIDH piles at the abutment and 42'' diameter CISS (Cast-In-Steel-Shell) piles at the bents.​EMI also assisted a pile load testing program to verify pile capacities. A total of 6 piles were load-tested using a conventional pile load testing method.
