Rail & Transit

Division 20 Portal Widening & Turnback Facility Project Los Angeles, California

Los Angeles, California

Los Angeles, California

-

Completed in

Completed in

EMI was the geotechnical design consultant for the Metro Division 20 Portal Widening and Turnback Facility Project in Los Angeles, CA. This rail improvement project involved reconfiguring the Division 20 Portal to increase train speeds and ensure reliability of operations. The project also added new tracks and rail yards, and modified the First Street Bridge and a historical Pickle Works building.

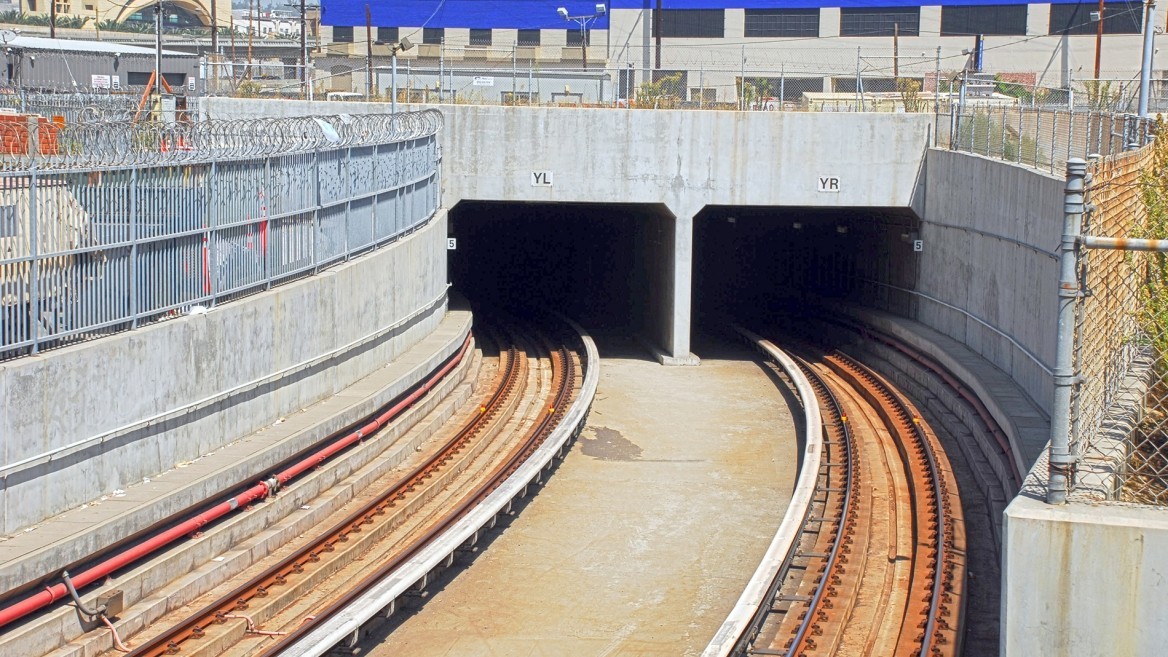

EMI performed a geotechnical field investigation and provided all geotechnical, seismic ground motion criteria, and soil-structure interaction recommendations for the project. The existing portal consisted of twin bored tunnels transitioning through a cut-and-cover tunnel to a U-structure as the tracks ascend to meet the outside grade. The portal opening was be widened and replaced with a covered U-structure. The U-structure cover are a series of reinforced concrete box beams designed to carry an additional future 27-ft tall embankment. This embankment will carry additional elevated rail lines across the portal as part of the separate Metro Link US project. To address the seismic racking behavior of the widened covered U-structure and future embankment, EMI performed nonlinear finite-element time-history analysis.
