Rail & Transit

Alameda Transportation Corridor Mid-Corridor Trench

Alameda, California

Alameda, California

-

Completed in

Completed in

1999

1999

The Mid-Corridor Trench was a 20-mile-long design-build highway and railroad project extending from downtown Los Angeles to the Ports of Los Angeles and Long Beach. This project eliminated highway-railroad conflicts, thus easing traffic congestion over a vast area of Los Angeles County. The railroad companies were ATSF, UP, and SPT.

EMI was one of the geotechnical consultants assigned to this project. Responsibilities included site investigation, ground motion, soil-structure interaction, and foundation design and analysis.

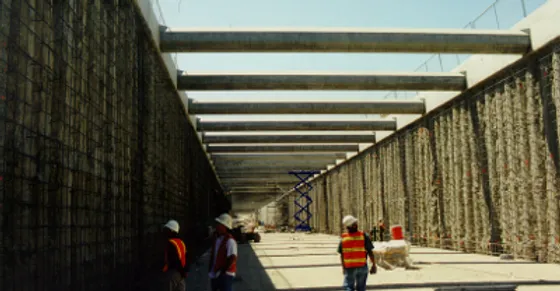

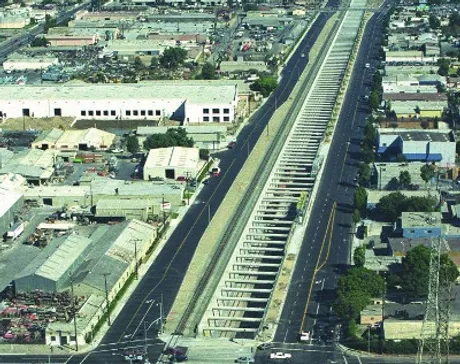

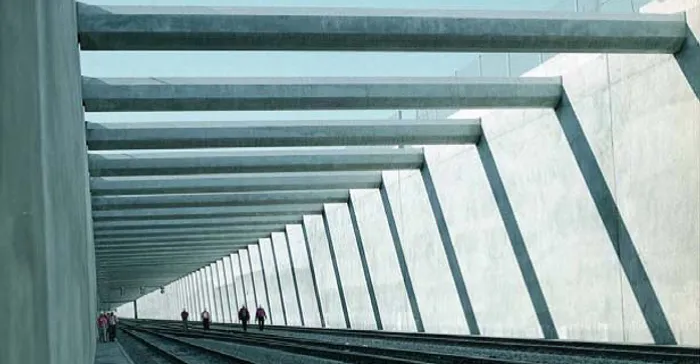

The railroad corridor is depressed in a trench. The trench structure system consists of strutted 3-ft diameter CIDH piles spaced 4-ft on centers, forming the walls of the trench with a cast-in-place bottom concrete slab. Struts were made of precast concrete typically placed 25-ft on centers. The project included 29 grade separations with east-west streets bridging across the trench.

In addition to traditional drilling and testing to characterize subsurface conditions, EMI utilized state-of-the-art soil-structure interaction analyses to provide engineering solutions for trench design. EMI performed two-dimensional finite-difference solutions to estimate the magnitude and distribution of earth loading on the trench walls.
